6-Seater Premium Golf Cart
Model code KC-P6 · KR-P6 — Signature / Adventure
Best for premium families and resorts seating six with every passenger facing forward — the flagship capacity model, the step above both the 6-Seater and the 4-Seater Premium.
Related builds: Standard · Lifted · Premium · Lifted
Configure your 6-Seater Premium Golf Cart
Configure your build, then add it to your quote — we usually reply within one business day.
Standard equipmentStandard
Included in every build — the comfort, convenience & safety features other dealers upsell.
Appearance packagetwo front-end styles — choose one
Body colorAll 12 standard colors · dot = render on request
Selected: Sapphire Blue
Wheels & tiresSize follows the package & chassis

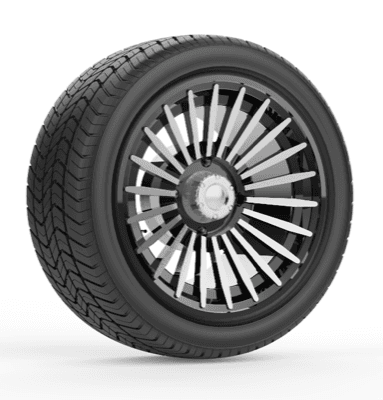

Standard 14" alloy · road tires, DOT-certified tires.
Seat leatherOur standard leathers · tap to preview · + = custom (other color / two-tone / stitching)

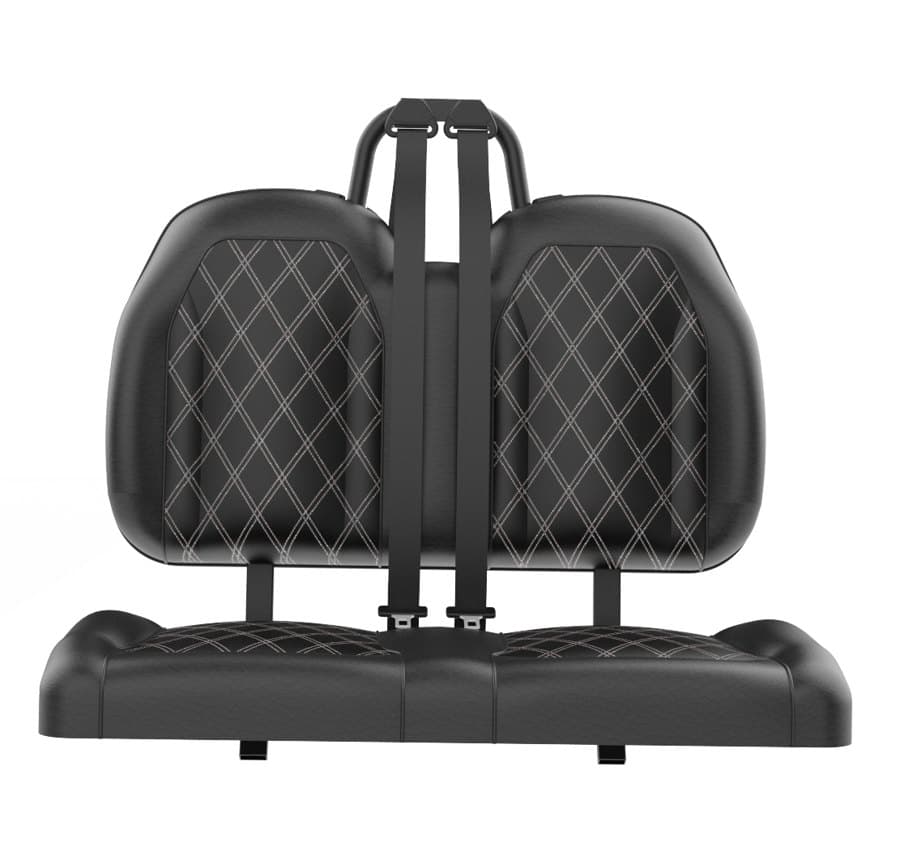

Selected leather: 318 Black. Integrally foam-molded cushions + premium microfiber leather. A different color, two-tone or stitching is available as a custom order.
Everything below is optional. Your cart already ships with everything in the standard equipment list — nothing here needs ticking to get a complete quote.
Range & drive4▾
Battery / range
Sound & light4▾
Comfort & cabin1▾
Weather protection3▾
On-course extras4▾
Make it yours5▾
No prices shown here. After you add to the quote, we usually reply within one business day.
A Flagship Line, Not a Trim Sticker
Premium buyers can tell the difference between a badge and a build. The P body is narrower and better proportioned, the dash is a real carbon-fiber water-transfer finish, and 3-point belts come standard — the details a discerning customer checks before paying more. It gives your floor a genuine step-up SKU, and you the margin that comes with it.
How This Model Earns Its Slot in Your Lineup
Choose this premium 6-seater if… six-seat buyers on your floor object to the rear-facing bench — three forward rows put every belt on a forward-facing seat back, with side entry for every row.
The verified difference. Three forward-facing rows on a 2,860 mm wheelbase — the longest in the golf-cart line — in the narrow 1,270 mm premium body, with carbon-fiber dash and DOT 3-point belts standard.
Specifications
Image stays pinned · spec groups switch as you scroll.
Powertrain
- Motor
- 48V 5KW IP67 AC motor
- Controller
- 48V-350A IP67 AC controller, with CAN communication + Bluetooth
- Battery
- 51.2V 105Ah LiFePO4 (UN38.3, MSDS documented) — 150Ah / 73.6V / lead-acid optional
- Charger
- 48V/25A onboard smart charger, ≤5 h charge time
- DC-DC
- High-power non-isolated DC-DC 48V/12V-300W
- Top Speed
- ≤25 mph (governed to your market)
- Range (flat road)
- 37–50 miles (60–80 km)
- Climb / Hold Grade
- 20% / 20%
Chassis & Suspension
- Seating
- 6 — all forward-facing (3 rows of 2)
- Chassis
- High-strength steel one-piece bent main beam + composite frame; process: acid-pickling + electrophoresis + paint (pillars: pickling + electrophoresis + powder coat)
- Front Suspension
- MacPherson independent + coil spring + tubular hydraulic shock
- Rear Suspension
- Integral rear axle (ratio 12.3:1) + coil spring + tubular hydraulic shock + H-arm + anti-roll bar
- Steering
- Bi-directional rack & pinion with automatic clearance compensation (EPS optional)
- Curb Weight (w/o battery)
- ≤530 kg (without battery)
- Dimensions (L×W×H)
- 3720 × 1270 × 2000 mm
- Track / Wheelbase
- Front/rear track 1030 / 1030 mm; wheelbase 2860 mm
- Turning Radius
- 4.5 m
- Ground Clearance
- 140 mm standard / 190 mm lifted (H)
- Wheels / Tires
- 14" alloy wheels (both Signature & Adventure), DOT WR028 road tires 215/35-14 (4 Ply Rated)
Braking & Safety
- Braking
- Four-wheel hydraulic + four-wheel disc brakes + 58 N·m electromagnetic parking brake (with vehicle hold/traction)
- Lighting
- LED front combination lamp (low/high beam, turn, DRL, position) + LED tail lamp (brake, position, turn)
- Braking Distance
- 3.5 m
Comfort & Tech
- Body
- Injection-molded exterior, metallic automotive-grade paint; injection-molded matte-black canopy
- Floor
- One-piece anti-aging floor mat
- Seats
- Integrally foam-molded cushions + premium microfiber leather; embossed (striped)
- Instrument / Multimedia
- IP66 10" multimedia cluster; CarPlay + Android Auto, Bluetooth, Radio, Music, Type-C charging + USB, reversing camera
- Audio
- IP66 full-range 5" coaxial hi-fi speaker H-505 (upgradable to 6.5" H065B sound-reactive lighting / 8-channel soundbar)
- MOQ
- First custom order: 1 branded sample. Repeat orders by the container — mix models & trims
Premium (P) is the narrow 1270 mm body with a carbon-fiber water-transfer dash and 3-point belts as standard. Top speed is governed to your market; battery, lift, package and options change some values — full datasheet available on request.
