2-Seater Utility Cart
Model code KC-V2H · KR-V2H — Signature / Adventure
Best for grounds crews, courses and property maintenance — the work-cart entry that opens the operations buyers your passenger line can't reach.
Configure your 2-Seater Utility Cart
Configure your build, then add it to your quote — we usually reply within one business day.
Standard equipmentStandard
Included in every build — the comfort, convenience & safety features other dealers upsell.

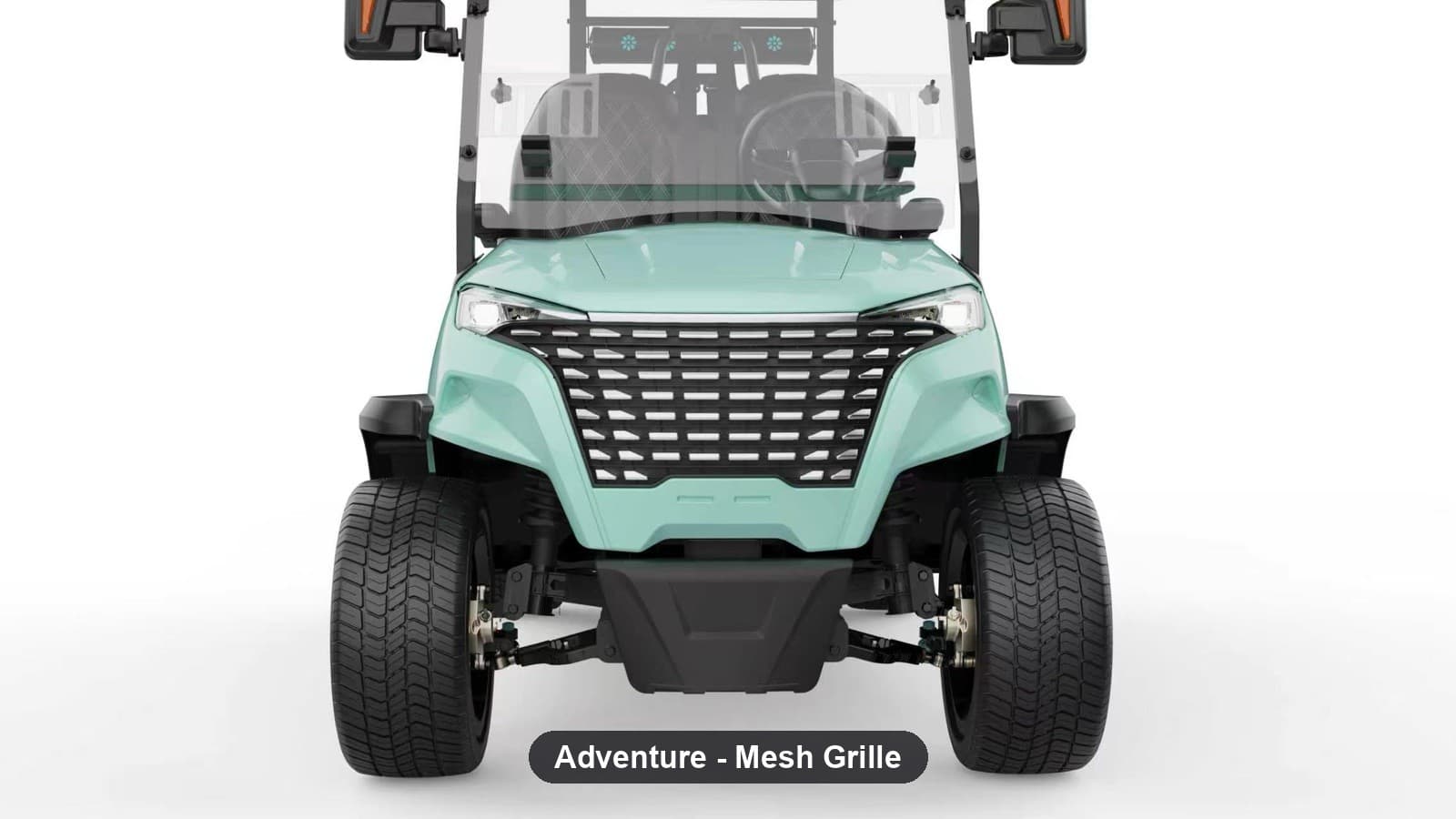

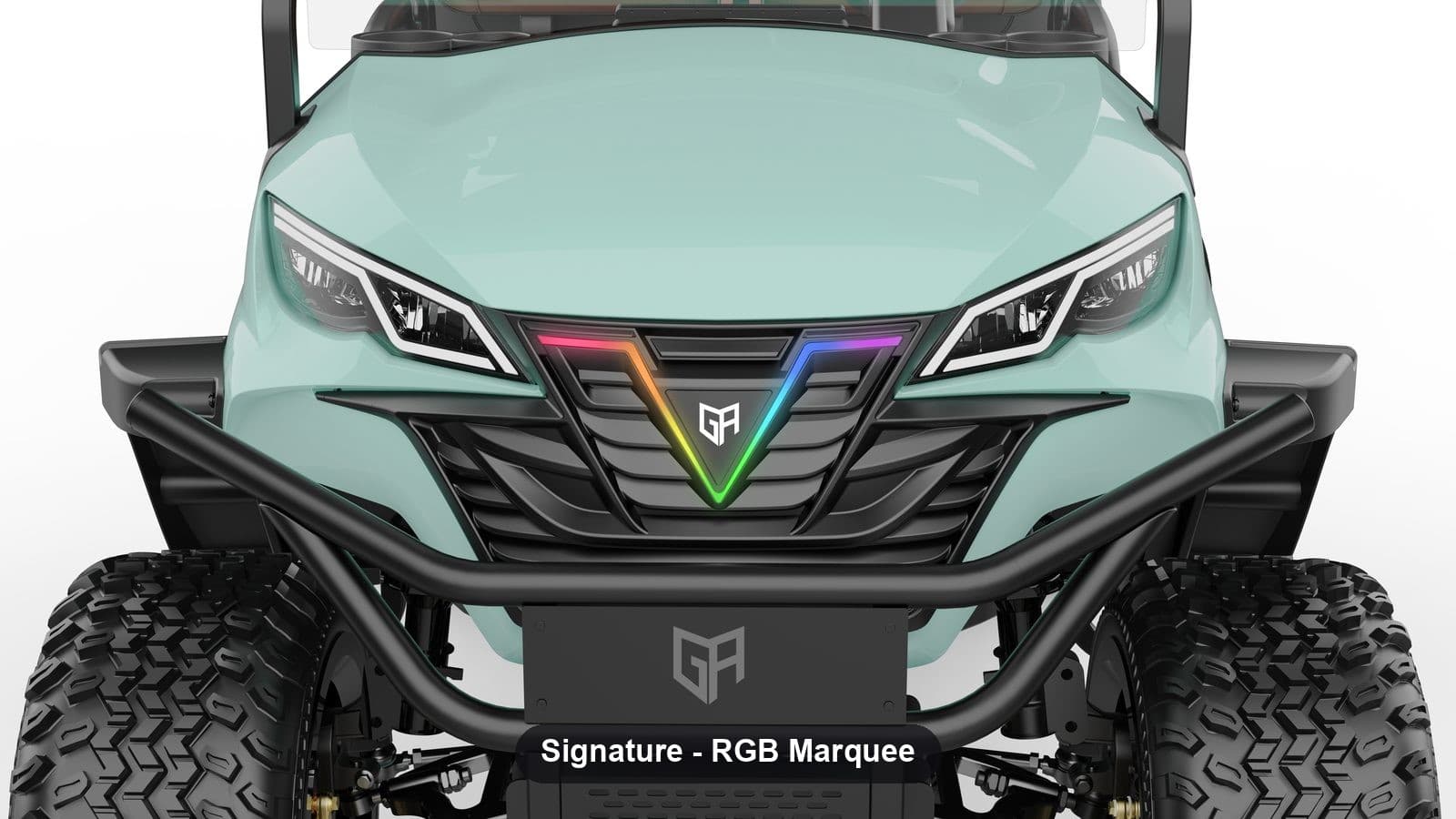

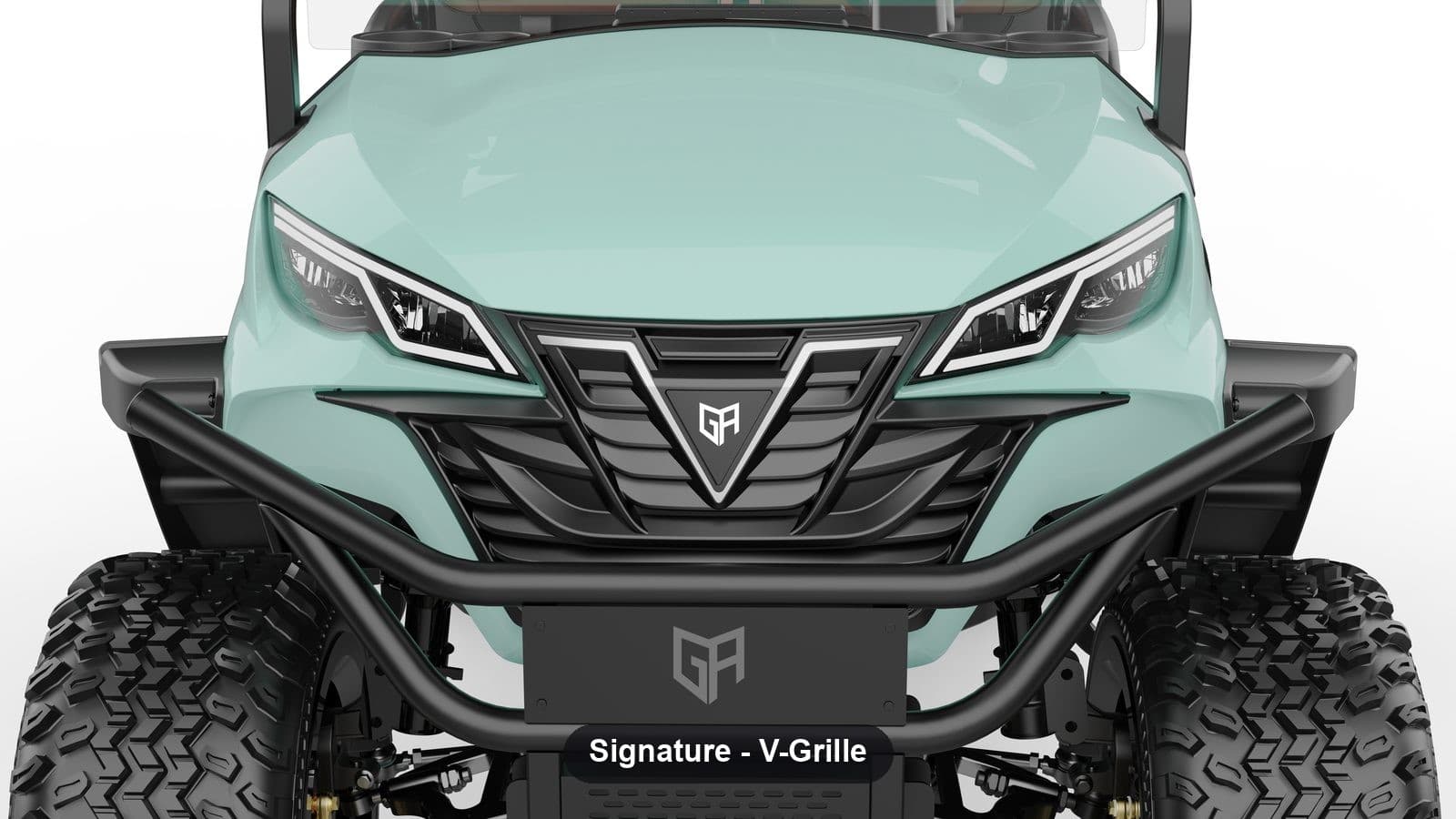

Appearance packagetwo front-end styles — choose one
Body colorAll 12 standard colors · dot = render on request
Selected: Sapphire Blue

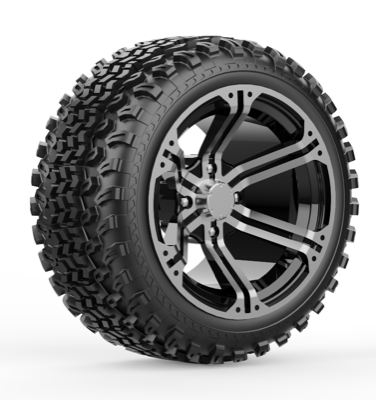

Wheels & tiresSize follows the package & chassis
Standard 12" alloy · all-terrain tires, DOT-certified tires.

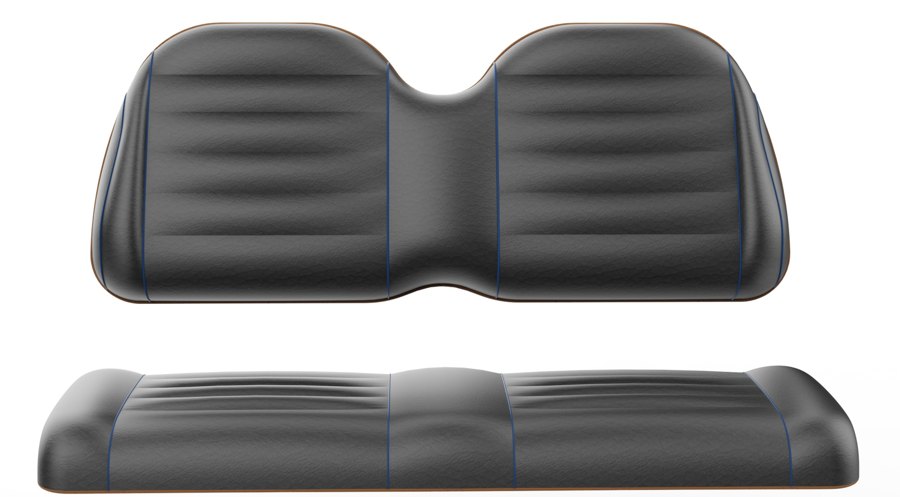

Seat leatherOur standard leathers · tap to preview · + = custom (other color / two-tone / stitching)
Selected leather: 318 Black. Integrally foam-molded cushions + premium microfiber leather. A different color, two-tone or stitching is available as a custom order.
Everything below is optional. Your cart already ships with everything in the standard equipment list — nothing here needs ticking to get a complete quote.
Range & drive5▾
Battery / range
Sound & light6▾
Roof
Comfort & cabin2▾
Weather protection3▾
On-course extras4▾
Make it yours7▾

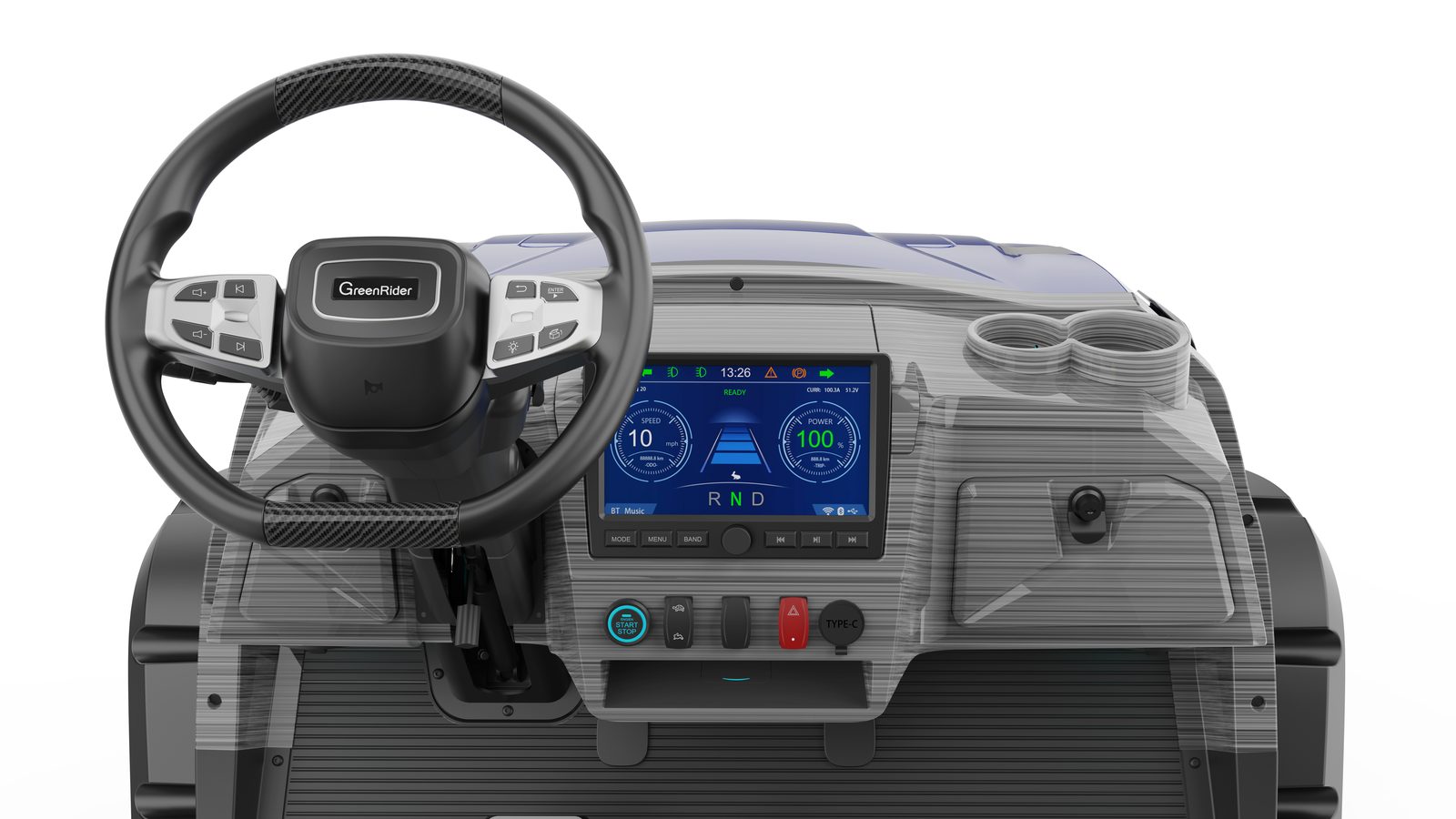

Dashboard finishwater-transfer film · priced in your quote
No prices shown here. After you add to the quote, we usually reply within one business day.
A Different Buyer, on the Same Service Shelf
The utility golf cart sells to operations, not recreation — grounds crews, resorts, campuses, gated communities, farms and ranches that need to move tools, turf supplies and equipment all year. It rides the same drivetrain, brakes and chassis as your passenger golf carts, so it broadens who you can sell to without broadening your parts shelf.
How This Model Earns Its Slot in Your Lineup
Choose this utility 2-seater if… operations buyers need a tool, not a toy — a fixed cargo box that hoses clean, a grounds-ready chassis, and the same drivetrain your shop already stocks for the passenger line.
The verified difference. An impact-resistant polymer cargo box rated to 90 kg (200 lb) — hoses clean, never rusts or dents — on the lifted 190 mm chassis with all-terrain wheels.
Specifications
Image stays pinned · spec groups switch as you scroll.
Powertrain
- Motor
- 48V 5KW IP67 AC motor
- Controller
- 48V-350A IP67 AC controller, with CAN communication + Bluetooth
- Battery
- 51.2V 105Ah LiFePO4 (UN38.3, MSDS documented) — 150Ah / 73.6V / lead-acid optional
- Charger
- 48V/25A onboard smart charger, ≤5 h charge time
- DC-DC
- High-power non-isolated DC-DC 48V/12V-300W
- Top Speed
- ≤25 mph (governed to your market)
- Range (flat road)
- 37–50 miles (60–80 km)
- Climb / Hold Grade
- 20% / 20%
Chassis & Suspension
- Seating
- 2 + cargo box
- Chassis
- High-strength steel one-piece bent main beam + composite frame; process: acid-pickling + electrophoresis + paint (pillars: pickling + electrophoresis + powder coat)
- Front Suspension
- MacPherson independent + coil spring + tubular hydraulic shock
- Rear Suspension
- Integral rear axle (ratio 12.3:1) + coil spring + tubular hydraulic shock + H-arm + anti-roll bar
- Steering
- Bi-directional rack & pinion with automatic clearance compensation (EPS optional)
- Curb Weight (w/o battery)
- ≤445 kg (without battery)
- Dimensions (L×W×H)
- 2930 × 1330 × 2040 mm
- Track / Wheelbase
- Front/rear track 1030 / 1030 mm; wheelbase 1675 mm
- Turning Radius
- 5 m
- Ground Clearance
- 140 mm standard / 190 mm lifted (H)
- Wheels / Tires
- Signature: 10" alloy 186-10INCH (lifted 12" + P334 all-terrain), DOT WG02 road 205/50-10 (4 Ply Rated). Adventure: 14" alloy 550, DOT WR028 road 215/35-14 / WG03 all-terrain
Braking & Safety
- Braking
- Four-wheel hydraulic + four-wheel disc brakes + 58 N·m electromagnetic parking brake (with vehicle hold/traction)
- Lighting
- LED front combination lamp (low/high beam, turn, DRL, position) + LED tail lamp (brake, position, turn)
- Braking Distance
- <4 m
Comfort & Tech
- Body
- Injection-molded exterior, metallic automotive-grade paint; injection-molded matte-black canopy
- Floor
- One-piece anti-aging floor mat
- Seats
- Integrally foam-molded cushions + premium microfiber leather; embossed (striped)

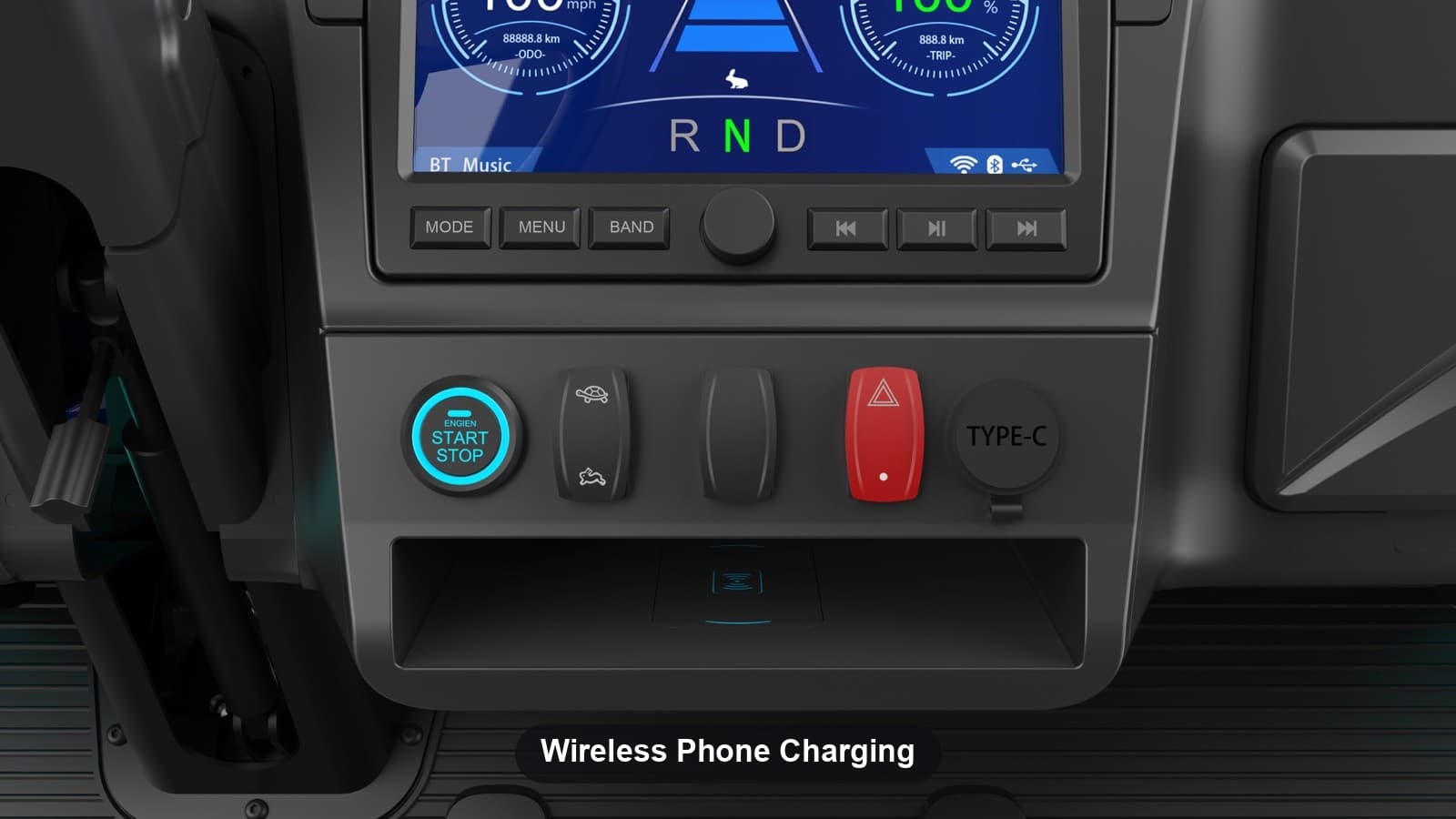

- Instrument / Multimedia

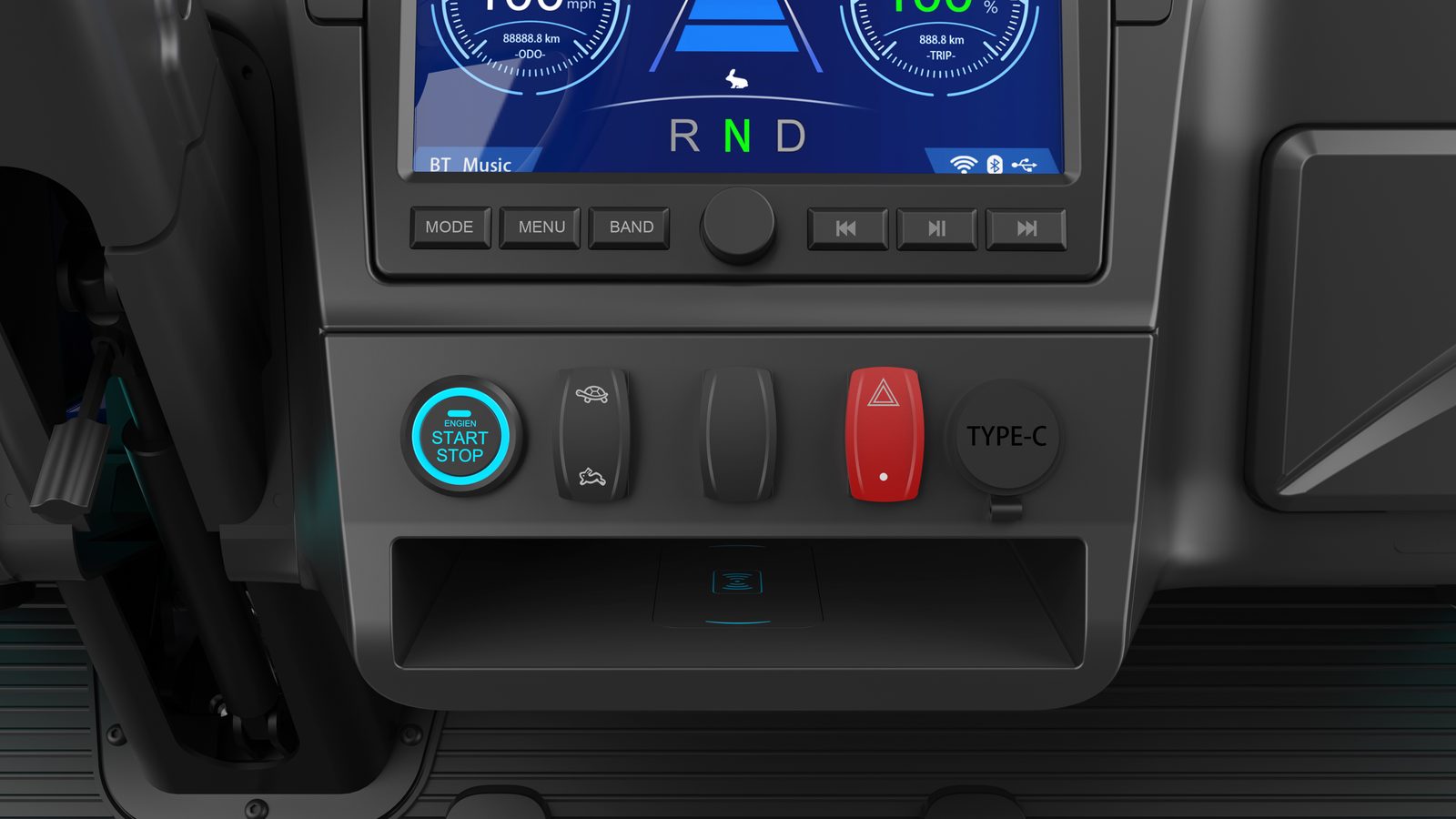

- IP66 10" multimedia cluster; CarPlay + Android Auto, Bluetooth, Radio, Music, Type-C charging + USB, reversing camera
- Audio

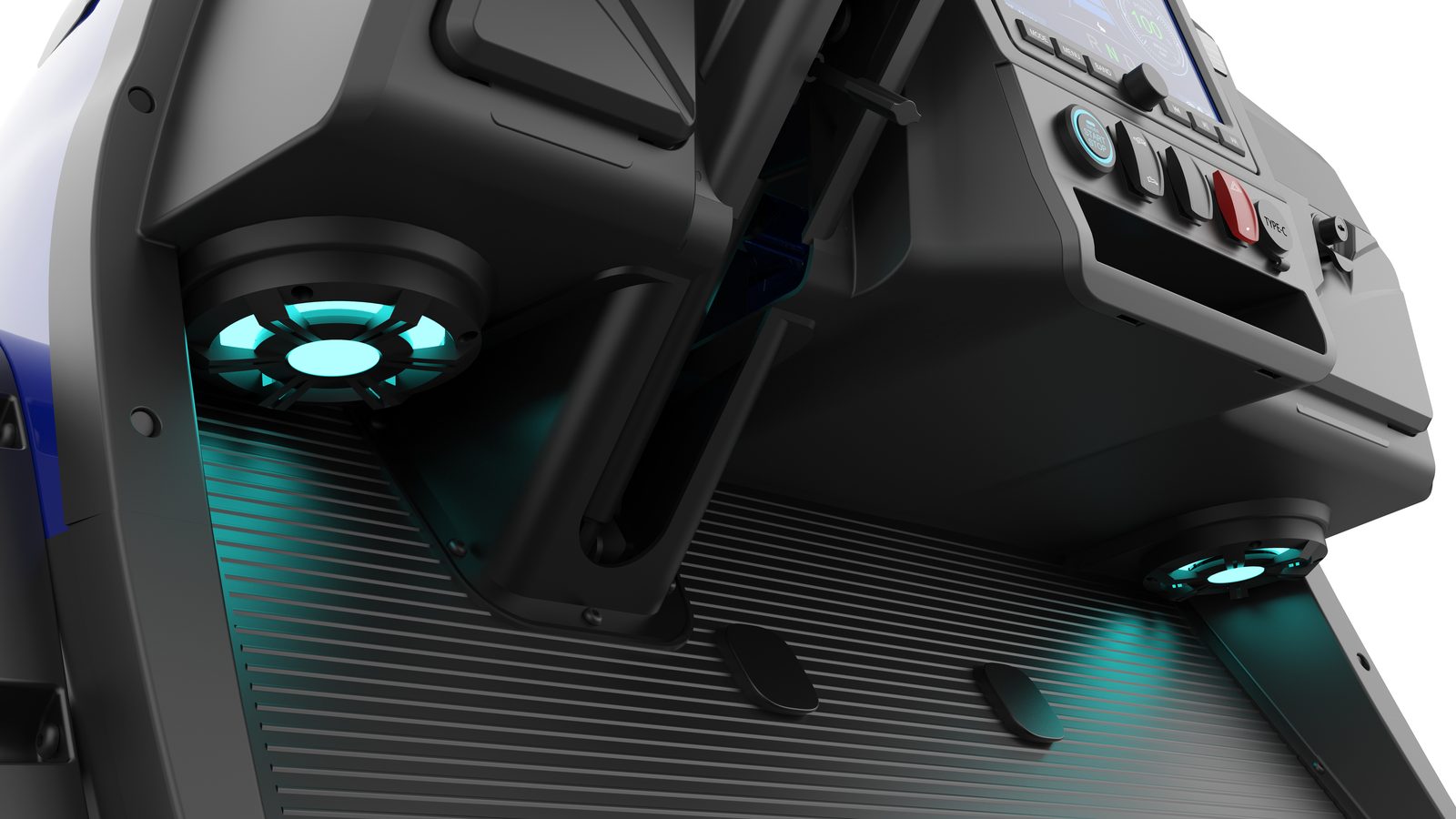

- IP66 full-range 5" coaxial hi-fi speaker H-505 (upgradable to 6.5" H065B sound-reactive lighting / 8-channel soundbar)
- MOQ
- First custom order: 1 branded sample. Repeat orders by the container — mix models & trims
Utility (V) replaces the rear seat with a cargo box on a lifted chassis; drivetrain and brakes match the passenger platform. Top speed is governed to your market — full datasheet available on request.
