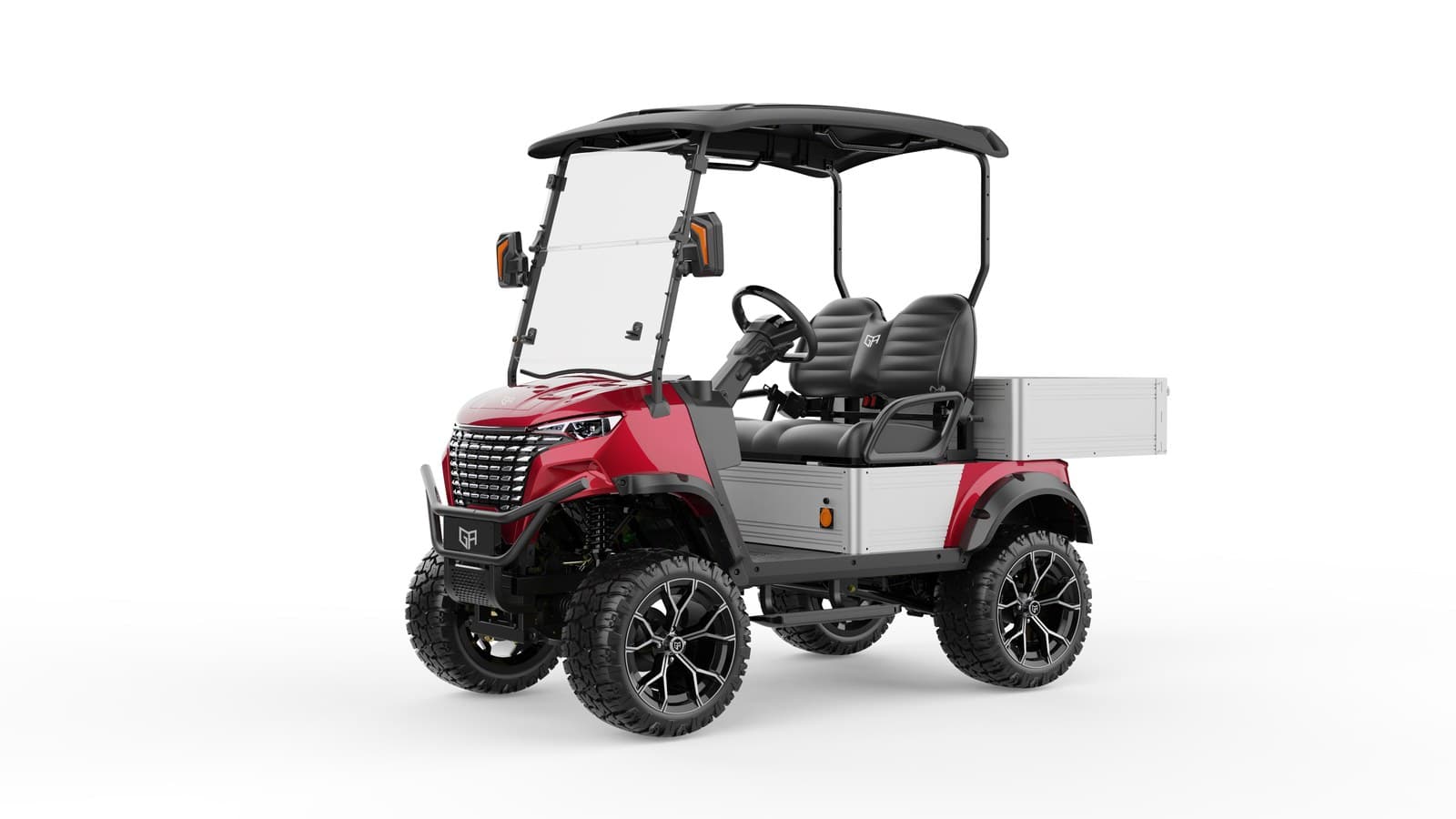

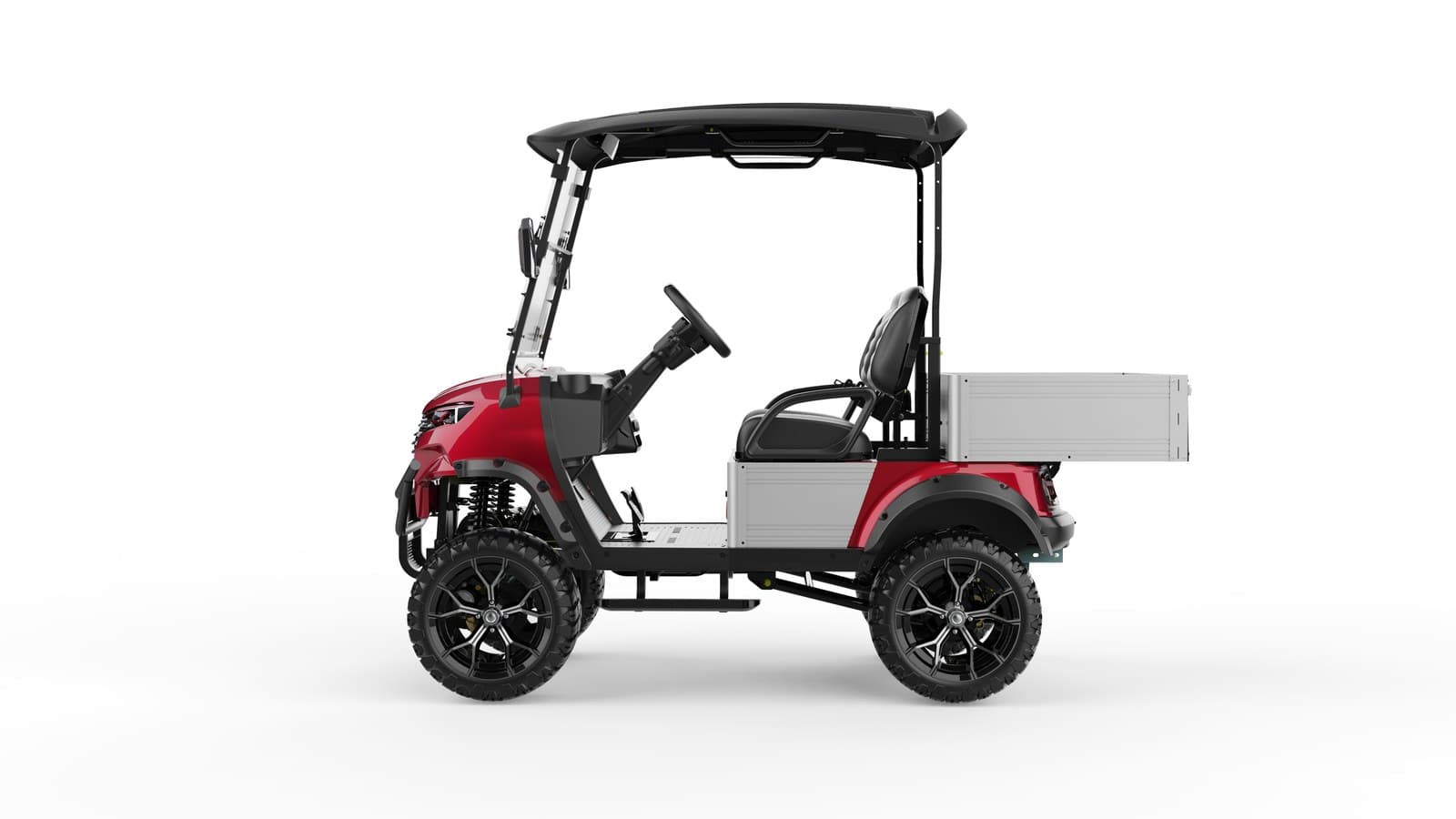

4x4 Golf Cart with Dump Bed — 300 lb
Model code KR-V300(4WD)
Best for farms, ranches and large properties with slopes, mud or distance — the range king of the utility line, and the traction story under your work-vehicle wall.
Related builds: 4×4 Utility Vehicle · Utility Vehicle · Utility Vehicle
The Electric 4×4 Dump Bed the Big Brands Skip
Club Car will sell you an electric utility vehicle or a 4×4 utility vehicle — never both: their electric models are rear-wheel drive, and 4×4 only comes with a gas or diesel engine. The cheap electric "utility carts" are flat, low-clearance builds with a box bolted on. This is the standard-bed build of the combination the market leaves open — a genuinely lifted, dual-motor 72V 4×4 on a LiFePO4 pack, with a 300 lb aluminum bed that tips and a 4.5 m turning circle that still threads rows, gates and trailer ramps.
How This Model Earns Its Slot in Your Lineup
Choose this 4×4 short bed if… the property has slopes, mud or distance between jobs — this is the traction build with the longest legs in the line.
The verified difference. True dual-motor 72V 4×4 (front + rear, engaged by the driver) with an electronic differential lock and a pneumatic-assisted tipping aluminum bed — up to 56 mi (90 km) on the 73.6V LiFePO₄ pack, the longest range of the four builds.
Specifications
Image stays pinned · spec groups switch as you scroll.
Powertrain
- Motor
- Front 72V 3KW AC induction + rear 72V 7.5KW PM synchronous (dual motor)
- Controller
- Front 72V/400A AC + rear 72V/500A PM synchronous
- Battery
- 73.6V 105Ah LiFePO4 (UN38.3, MSDS documented)
- Charger
- 72V/18A onboard smart charger, ≤6 h charge time
- DC-DC
- 72V/12V 500W non-isolated
- Top Speed
- ≤25 mph (governed to your market)
- Range (flat road)
- 56 miles (90 km)
- Climb / Hold Grade
- 20% / 20%
Chassis & Suspension
- Seating
- 2
- Chassis
- High-strength steel one-piece bent main beam + composite frame; acid-pickling + electrophoresis + paint
- Front Suspension
- MacPherson independent + coil spring + tubular hydraulic shock
- Rear Suspension
- Integral rear axle (ratio 12.3:1) with electronic differential lock + coil spring + hydraulic shock + H-arm + anti-roll bar
- Steering
- EPS + bi-directional rack & pinion with auto clearance compensation; multifunction automotive wheel
- Curb Weight (w/o battery)
- ≤600 kg
- Dimensions (L×W×H)
- 2850 × 1330 × 2040 mm
- Track / Wheelbase
- Front/rear track 1030 / 1030 mm; wheelbase 1675 mm
- Turning Radius
- 4.5 m
- Ground Clearance
- 190 mm (lifted)
- Wheels / Tires
- 14" alloy wheels, DOT WG03 all-terrain tires 23×10-14 (4 Ply Rated)
Braking & Safety
- Braking
- Four-wheel hydraulic + four-wheel disc brakes + 58N electromagnetic parking brake (with vehicle hold/traction)
- Lighting
- LED front combination lamp (low/high beam, turn, DRL, position) + LED tail lamp (brake, position, turn)
- Braking Distance
- <3 m
Comfort & Tech
- Body
- Aluminum body & cargo unit (rust-proof), private-mold tooling; injection-molded front cowl in metallic automotive-grade paint; matte-black canopy
- Floor
- One-piece anti-aging floor mat
- Seats
- Integrally foam-molded cushions + premium microfiber leather; embossed (striped)
- Instrument / Multimedia
- IP66 10" multimedia cluster; CarPlay + Android Auto, Bluetooth, Radio, Music, Type-C + USB, reversing camera
- Audio
- IP66 full-range 5" coaxial hi-fi speaker H-505 (6.5" H065B / 8-channel soundbar optional)
- MOQ
- First custom order: 1 branded sample. Repeat orders by the container — mix models & trims
- Drivetrain
- True part-time 4×4 — dual motor (front + rear) with an electronic differential lock
- Cargo Bed
- Aluminum tipping / dump bed, pneumatic-assisted — 800 mm long × 1100 mm wide × 300 mm deep
- Payload
- 300 lb (136 kg)
Electric utility vehicle — top speed governed to ≤25 mph. Intended for off-road, agricultural and private-property use; it is not sold as a street-legal / LSV vehicle. Battery documented to UN38.3 + MSDS. Full datasheet available on request.
Standard Equipment
True dual-motor 72V 4×4 drivetrain
Electronic differential lock — get unstuck with a wheel off the ground
EPS power steering + multifunction automotive wheel
Aluminum tipping / dump cargo bed
Foam-molded seat cushion + premium microfiber leather
Single-arm combination switch
Instrument-panel storage box
Full-aluminum hydraulic brake pedal + Hall-effect accelerator
Four-wheel hydraulic disc brakes + 58N electromagnetic parking brake
Folding side mirrors with turn signals + wide-angle center mirror
DOT-certified anti-aging folding windshield
DOT-certified 2-point seat belts
One-touch start + wireless phone charging
High / low speed switch
Reversing buzzer + reversing camera system
IP66 10" multimedia cluster — CarPlay + Android Auto, Bluetooth, Radio, Music
Type-C + USB charging
Folding steering column
IP66 full-range 5" coaxial hi-fi speaker
14" alloy wheels + all-terrain tires
2" US-style rear tow hitch + ball
Available Upgrades & Customization
| Category | Options |
|---|---|
| Safety | DOT 3-point seat belts; flat tempered windshield + electric wiper |
| Audio | IP66 6.5" coaxial H065B (sound-reactive lighting); 8-channel sound-reactive soundbar |
| Lighting & Ambience | Canopy ambient lighting; chassis ambient lighting |
| Weather Protection | Rain curtain; dust cover |
| Branding / Private-label | Custom body & front logo; custom paint color; laser-etched lit grille logo; seat logo embroidery; wheel-cap / steering-wheel logo; custom start-up animation; water-transfer dash panel |
