golf cart · Private-Label & Wholesale

2-Seater Golf Cart

The everyday two-seater — same chassis and drivetrain as our 4- and 6-seaters, in a compact footprint your customers can price against anything on the lot.

Private-mold V-grille that doesn't look like the auction-lot cart.
48V 5KW AC drivetrain with four-wheel hydraulic disc brakes.
Acid-pickled, e-coated steel chassis — automotive-grade rust protection — with MacPherson independent front suspension and a rear anti-roll bar.
Lithium standard, lead-acid / 150Ah optional.
Automotive-style cockpit — multifunction steering wheel with drive selector, one-touch start, wireless charging, mirrors with LED turn signals.
Lifted (H) and true 4x4 available on the same platform.
Fully brandable — grille, paint, seats, badge.

Build & Get Pricing ↓See the full specifications ↓

Related builds: Lifted 4×4 · Utility

Who This Is For

Dealers who want a two-seater that isn't the same public-mold golf cart every shop within 200 miles is discounting. The private-mold V-grille and 10" dash give your customers a visible reason the price is higher — and give you a line you can actually build a brand on.

Same Platform, Room to Grow the Order

One chassis, four trims. The 2-seater shares its chassis, drivetrain and brakes with our 4- and 6-seaters, so a first container can mix seat counts and trims without complicating your parts shelf.

Lithium done right. A 51.2V 105Ah LiFePO4 pack (UN38.3 + MSDS) is standard; 150Ah, 73.6V and lead-acid are options. The onboard 48V 25A charger (cTUVus / UL) tops up in about 5 hours.

Built to be modified. Lifted (H) 190 mm chassis, 14" wheels, EPS and true 4x4 with a differential lock are all available — a clean base for a custom or lift shop to build on.

Specifications

01 · Powertrain

Image stays pinned · spec groups switch as you scroll.

01 · Powertrain

Powertrain

Motor: 48V 5KW IP67 AC motor
Controller: 48V-350A IP67 AC controller, with CAN communication + Bluetooth
Battery: 51.2V 105Ah LiFePO4 (UN38.3, MSDS certified) — 150Ah / 73.6V / lead-acid optional
Charger: 48V/25A onboard smart charger, ≤5 h charge time
DC-DC: High-power non-isolated DC-DC 48V/12V-300W
Top Speed: ≤25 mph (governed to your market)
Range (flat road): 60–80 km (~37–50 miles)
Climb / Hold Grade: 20% / 20%

02 · Chassis & Suspension

Chassis & Suspension

Seating: 2
Chassis: High-strength steel one-piece bent main beam + composite frame; process: acid-pickling + electrophoresis + paint (pillars: pickling + electrophoresis + powder coat)
Front Suspension: MacPherson independent + coil spring + tubular hydraulic shock
Rear Suspension: Integral rear axle (ratio 12.3:1) + coil spring + tubular hydraulic shock + H-arm + anti-roll bar
Steering: Bi-directional rack & pinion with automatic clearance compensation (EPS optional)
Curb Weight (w/o battery): ≤390 kg (without battery)
Dimensions (L×W×H): 2360 × 1330 × 1900 mm
Track / Wheelbase: Front/rear track 1030 / 1030 mm; wheelbase 1675 mm
Turning Radius: 4 m
Ground Clearance: 140 mm standard / 190 mm lifted (H)

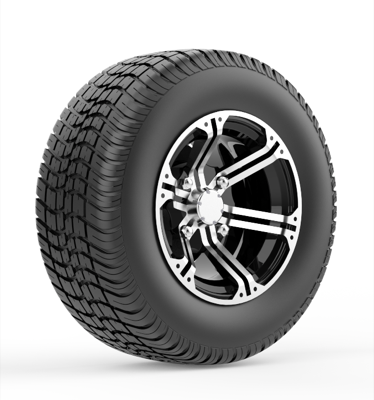

Wheels / Tires: Signature: 10" alloy 186-10INCH (lifted 12" + P334 all-terrain), DOT WG02 road 205/50-10 (4 Ply Rated). Adventure: 14" alloy 550, DOT WR028 road 215/35-14 / WG03 all-terrain

03 · Braking & Safety

Braking & Safety

Braking: Four-wheel hydraulic + four-wheel disc brakes + 58N electromagnetic parking brake (with vehicle hold/traction)
Lighting: LED front combination lamp (low/high beam, turn, DRL, position) + LED tail lamp (brake, position, turn)
Braking Distance: <3 m

04 · Comfort & Tech

Comfort & Tech

Body: Injection-molded exterior, metallic automotive-grade paint; injection-molded matte-black canopy
Floor: One-piece anti-aging floor mat
Seats: Integrally foam-molded cushions + premium microfiber leather; embossed (striped)
Instrument / Multimedia: IP66 10" multimedia cluster; CarPlay + Android Auto, Bluetooth, Radio, Music, Type-C charging + USB, reversing camera
Audio: IP66 full-range 5" coaxial hi-fi speaker H-505 (upgradable to 6.5" H065B sound-reactive lighting / 8-channel soundbar)
MOQ: By the container — mixed models & trims welcome on a first order

Specs shown are the full factory standard configuration for the Signature (KC) package. Top speed is governed to your market; battery, lift, drivetrain, package and options change some values — full datasheet available on request.
