4-Seater Lifted Premium Golf Cart
Model code KC-P4H · KR-P4H — Signature / Adventure
Best for large-property buyers who want the upscale cabin and the terrain ability in one build — the top of the 4-seat range, the line's only premium-off-road slot.
Configure your 4-Seater Premium Lifted Golf Cart
Configure your build, then add it to your quote — we usually reply within one business day.
Standard equipmentStandard
Included in every build — the comfort, convenience & safety features other dealers upsell.
Appearance packagetwo front-end styles — choose one
Body colorAll 12 standard colors · dot = render on request
Selected: Sapphire Blue
Wheels & tiresSize follows the package & chassis

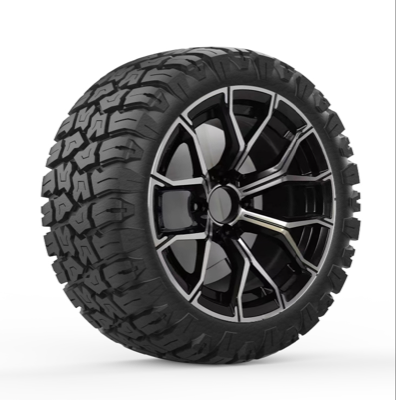

Standard 14" alloy · all-terrain tires, DOT-certified tires.
Seat leatherOur standard leathers · tap to preview · + = custom (other color / two-tone / stitching)

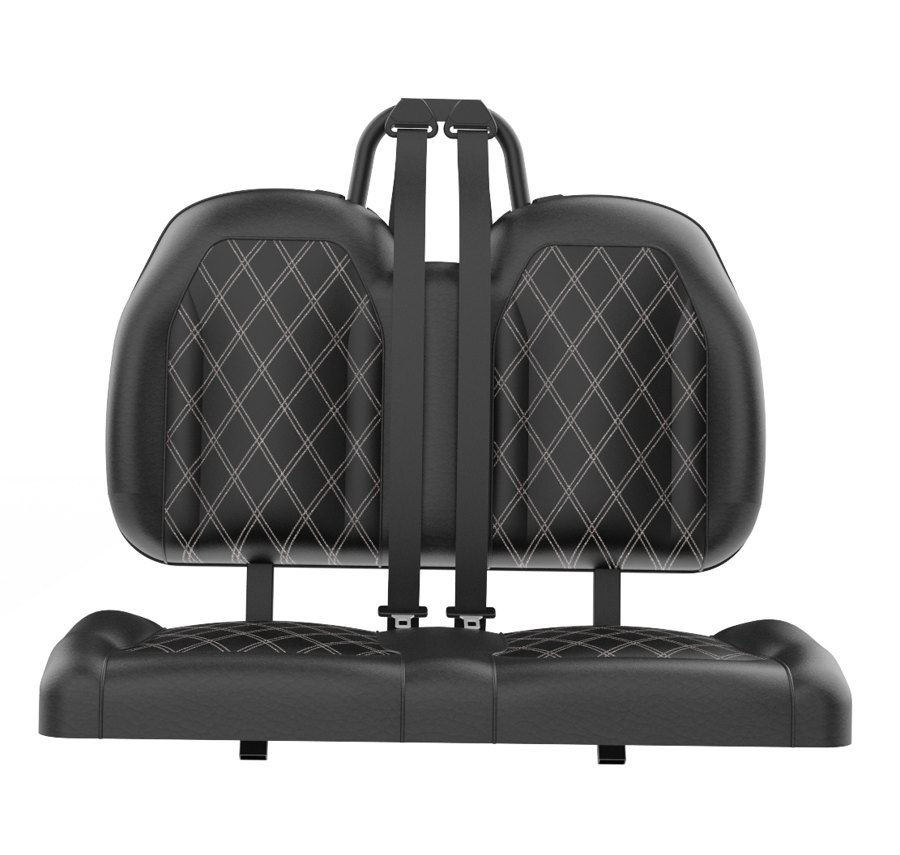

Selected leather: 318 Black. Integrally foam-molded cushions + premium microfiber leather. A different color, two-tone or stitching is available as a custom order.
Everything below is optional. Your cart already ships with everything in the standard equipment list — nothing here needs ticking to get a complete quote.
Range & drive5▾
Battery / range
Sound & light6▾
Roof
Comfort & cabin1▾
Weather protection3▾
On-course extras4▾
Make it yours5▾
No prices shown here. After you add to the quote, we usually reply within one business day.
A Flagship Line, Not a Trim Sticker
Premium buyers can tell the difference between a badge and a build. The P body is narrower and better proportioned, the dash is a real carbon-fiber water-transfer finish, and 3-point belts come standard — the details a discerning customer checks before paying more. It gives your floor a genuine step-up SKU, and you the margin that comes with it.
How This Model Earns Its Slot in Your Lineup
Choose this lifted premium 4-seater if… the customer asks for everything — forward seating, the upscale cabin and real ground clearance — and will pay the top-of-range ticket for one vehicle that does both.
The verified difference. The all-forward premium body (1,270 mm, carbon-fiber dash, 3-point belts standard) on the 190 mm lifted chassis with a part-time 4×4 and hand-engaged mechanical differential lock.
Specifications
Image stays pinned · spec groups switch as you scroll.
Powertrain
- Motor
- 48V 5KW IP67 AC motor
- Controller
- 48V-350A IP67 AC controller, with CAN communication + Bluetooth
- Battery
- 51.2V 105Ah LiFePO4 (UN38.3, MSDS documented) — 150Ah / 73.6V / lead-acid optional
- Charger
- 48V/25A onboard smart charger, ≤5 h charge time
- DC-DC
- High-power non-isolated DC-DC 48V/12V-300W
- Top Speed
- ≤25 mph (governed to your market)
- Range (flat road)
- 37–50 miles (60–80 km)
- Climb / Hold Grade
- 20% / 20%
Chassis & Suspension
- Seating
- 4 — all forward-facing (2 rows of 2)
- Chassis
- High-strength steel one-piece bent main beam + composite frame; process: acid-pickling + electrophoresis + paint (pillars: pickling + electrophoresis + powder coat)
- Front Suspension
- MacPherson independent + coil spring + tubular hydraulic shock
- Rear Suspension
- Integral rear axle (ratio 12.3:1) + coil spring + tubular hydraulic shock + H-arm + anti-roll bar
- Steering
- Bi-directional rack & pinion with automatic clearance compensation (EPS optional)
- Curb Weight (w/o battery)
- ≤510 kg (without battery)
- Dimensions (L×W×H)
- 2995 × 1270 × 2080 mm
- Track / Wheelbase
- Front/rear track 1030 / 1030 mm; wheelbase 2075 mm
- Turning Radius
- 4 m
- Ground Clearance
- 140 mm standard / 190 mm lifted (H)
- Wheels / Tires
- 14" alloy wheels (both Signature & Adventure), DOT WG03 all-terrain tires 23×10-14 (4 Ply Rated)
Braking & Safety
- Braking
- Four-wheel hydraulic + four-wheel disc brakes + 58 N·m electromagnetic parking brake (with vehicle hold/traction)
- Lighting
- LED front combination lamp (low/high beam, turn, DRL, position) + LED tail lamp (brake, position, turn)
- Braking Distance
- <3 m
Comfort & Tech
- Body
- Injection-molded exterior, metallic automotive-grade paint; injection-molded matte-black canopy
- Floor
- One-piece anti-aging floor mat
- Seats
- Integrally foam-molded cushions + premium microfiber leather; embossed (striped)
- Instrument / Multimedia
- IP66 10" multimedia cluster; CarPlay + Android Auto, Bluetooth, Radio, Music, Type-C charging + USB, reversing camera
- Audio
- IP66 full-range 5" coaxial hi-fi speaker H-505 (upgradable to 6.5" H065B sound-reactive lighting / 8-channel soundbar)
- MOQ
- First custom order: 1 branded sample. Repeat orders by the container — mix models & trims
Premium (P) is the narrow 1270 mm body with a carbon-fiber water-transfer dash and 3-point belts as standard. Top speed is governed to your market; battery, lift, package and options change some values — full datasheet available on request.
See how lift and 4x4 options work across the lifted and 4x4 golf cart range.
